Aquatic Ecosystems Research Laboratory

Location

2202 Main Mall

Vancouver, BC

Canada

V6T 1A1

Staticmap?center=49.2633, 123.251&size=175x175&scale=2&markers=color:red%7csize:small%7c49.2633, 123
Building Type:
Research, Laboratory, Academic
Building Area:
45,000 Square Feet
Certifications & Awards
  • LEED-BC Gold Certified
Project Team
  • Architect: Patkau Architects
  • LEED Consultant: Recollective
  • Owner: UBC Properties Trust

Summary

The Aquatic Ecosystems Research Laboratory (AERL) is a four story, 6000 m facility that houses three distinct research units:

  • The UBC Fisheries Centre (FC)
  • The Institute for Resources Environment and Sustainability (IRES)
  • The BC Fisheries Research Unit (BCFU)

Completed in 2006 AERL features a state-of-the-art Immersion Laboratory that simulates real-time underwater and coastal habitats. The Canada Green Building Council has awarded LEED-BC Gold Certification to UBC-AERL.

Sustainable Sites

Located at the UBC Point Grey Campus on the University Main Mall and close to University Boulevard, AERL provides excellent access to public transportation, and a covered bike area with showers for cyclists.

Energy & Atmosphere

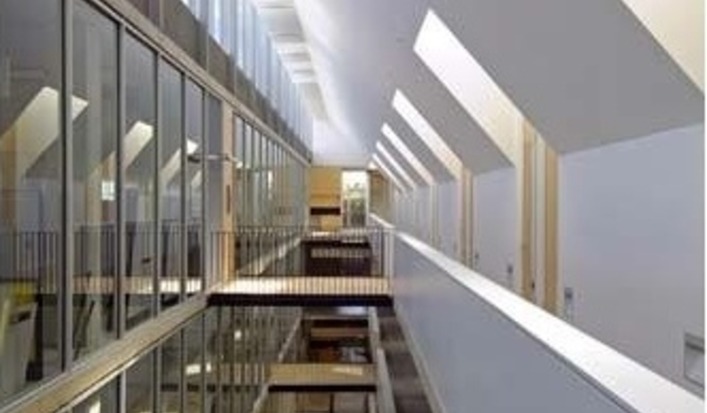

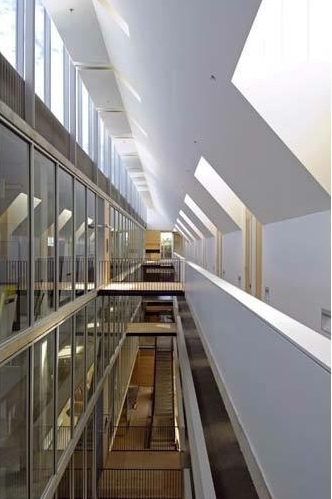

AERL is organized around a central atrium that connects all four levels providing visual interest and space for natural ventilation via thermal stack effect.

Overall the building saves approximately 301.3 MWh of energy and reduces the amount of equivalent CO2 by 40.5% per year. To further offset CO2 AERL purchased Green Power Certificates equivalent to 100% of the buildings electrical consumption.

Water Efficiency

AERL uses no water for irrigation and reduces the amount of potable water used for faucets and toilets by 41% .

Materials & Resources

AERL diverted 77% of its construction waste away from the landfill. The building also contains 24% recycled materials & 46% of all the materials used are regionally manufactured.

Indoor Environmental Quality

AERL made extensive use of Low VOC products including adhesives, sealants, paints & carpets. Also urea-formaldehyde free cabinetry & countertops were used throughout the building.

Innovation in Design

AERL achieved exemplary performance in Recycled Content, Water Use Reduction, 100% Green Power and Regional Materials.
